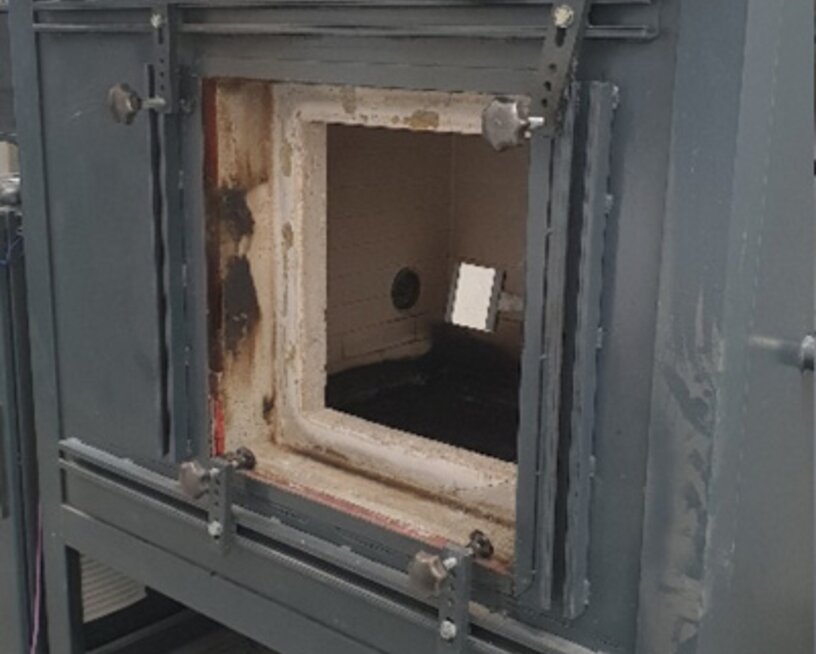

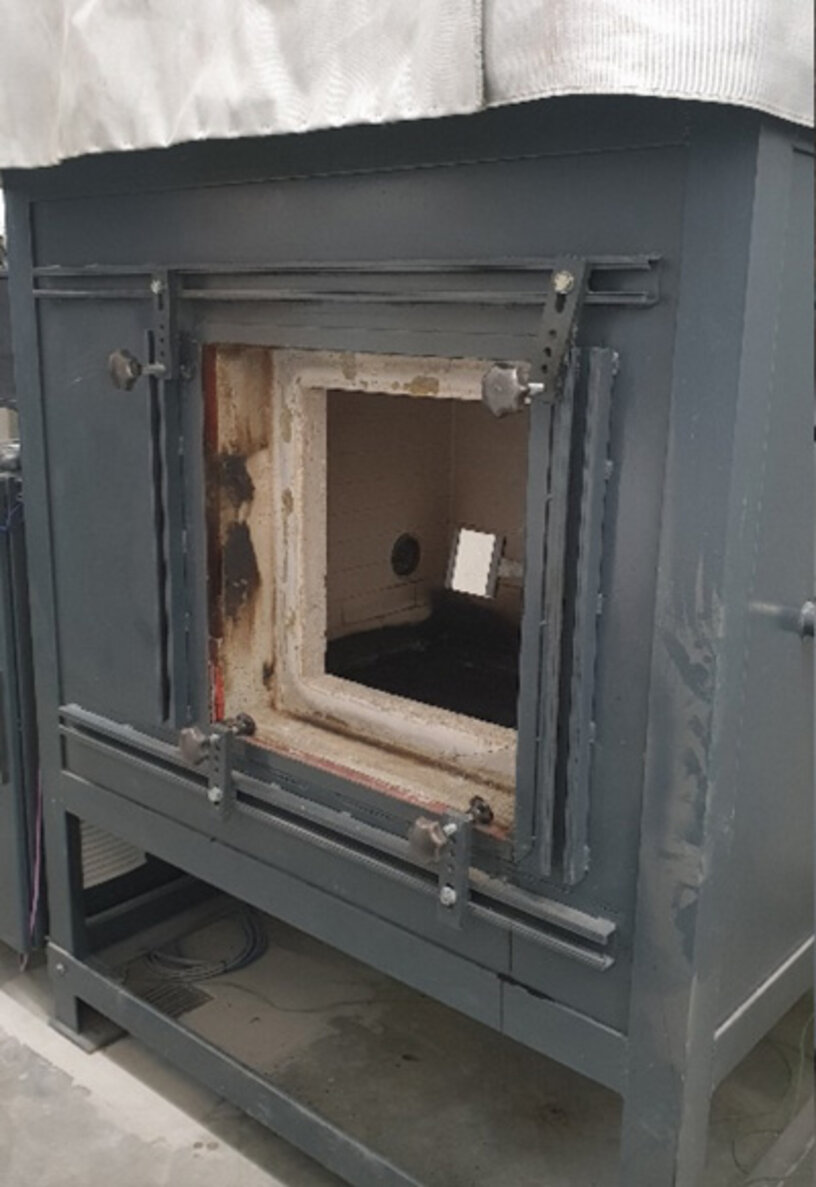

Small fire-test bench (Fire resistance)

Our small fire furnace is used to determine the resistance of components to fire. Due to the horizontal and vertical opening of the furnace, homogeneous test specimens as well as coherent systems can be tested for their fire resistance. The results can serve as an orientation for a new development or be part of an evaluation.



Technical data

Manufacturer

ift MessTec GmbH

Furnace opening

620 mm x 620 mm

Clear opening:

500 mm x 500 mm

Openings:

Horizontal / Vertival

Possible setpoint curves

Outdoor component - 480 min

HC - 480 min

HCM - 480 min

ISO 834_ETK - 360 min

NRWG_original

Schwehl - 480 min

Possible measuring points

8
